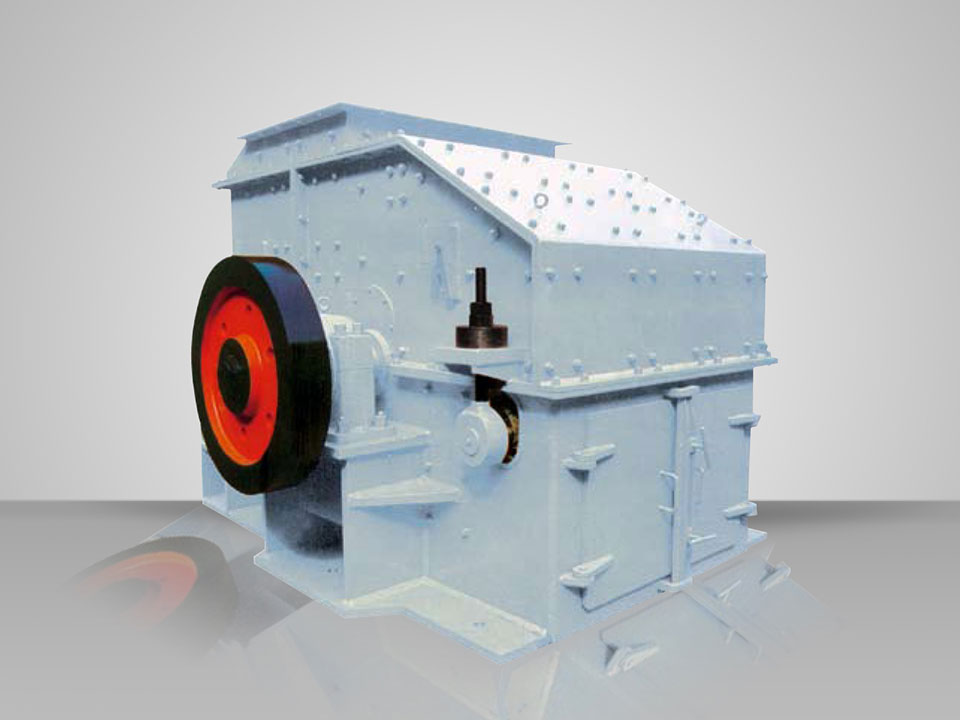

PC Series Hammer Crusher

Description of PC Series Hammer Crusher :
Our PC series hammer crusher is mainly used to crush brittle mineral materials whose compressive strength is less than 100MPa, such as coal, salt, chalk, gypsum, alums, bricks, tiles, limestone, etc.

It is mainly comprised of crusher frame, rotor, grate bars, and hammer. Rotors are directly driven by the motor via elastic coupling, and materials will be crushed under the impacting action of hammer head to the crushing plate.

Technical Parameters of PC Series Hammer Crusher:

Model

rotor working diameter / length(mm)

Rotating Speed of rotors (r/min)

Feeding Size (mm)

Max.feeding size (mm)

Discharging size (mm)

Handling Capacity (t/h)

Motor Power (kw)

Weight (t)

Overall Dimensions (mm)

PC-41

Ф400/175

1000

145x270

50

3

0.5

5.5

0.5

812x1056x1315

PC-44

Ф400/400

1500

145x450

100

10

5~8

7.5

0.9

744x942x878

PC-64

Ф600/400

1000

295x450

100

15

10~12

18.5

1.03

1054x972x1117

PC-66

Ф600/600

1000

295x570

100

10

12~18

45

2.14

1315x840x1501

PC-86

Ф800/600

1000

350x570

200

10

20-25

55

2.45

1515x2586x1040

PC-88

Ф800/800

1000

350x850

200

15

35-45

55

3.05

1515x2831x1040

PC-108

Ф1000/800

1000

580x850

200

13

25-40

110

6.5

3206x2210x1515

PC-1010

Ф1000/1000

1000

580x1060

200

15

40-60

132

7.59

3514x2230x1516

PC-1010

Ф1000/1000

1000

580x1060

200

10

30-50

160

7.59

3514x2230x1518

PC-1010

Ф1000/1000

1000

580x1060

200

8

25-35

185

7.59

3514x2230x1518

PC-1212

Ф1250/1250

750

650x1330

200

20

90-110

185

19.1

4475x3162x2250

PC-1414

Ф1400/1400

750

1050x1540

250

20

120-170

280

17.2

2790x2800x2310

PC-1618

Ф1600/1800

590

1200x1740

350

20

220-280

500

32.4


Note: Parameters in the form are only for reference, and specific ones should refer to the particular contract.

=========================================================================================================
