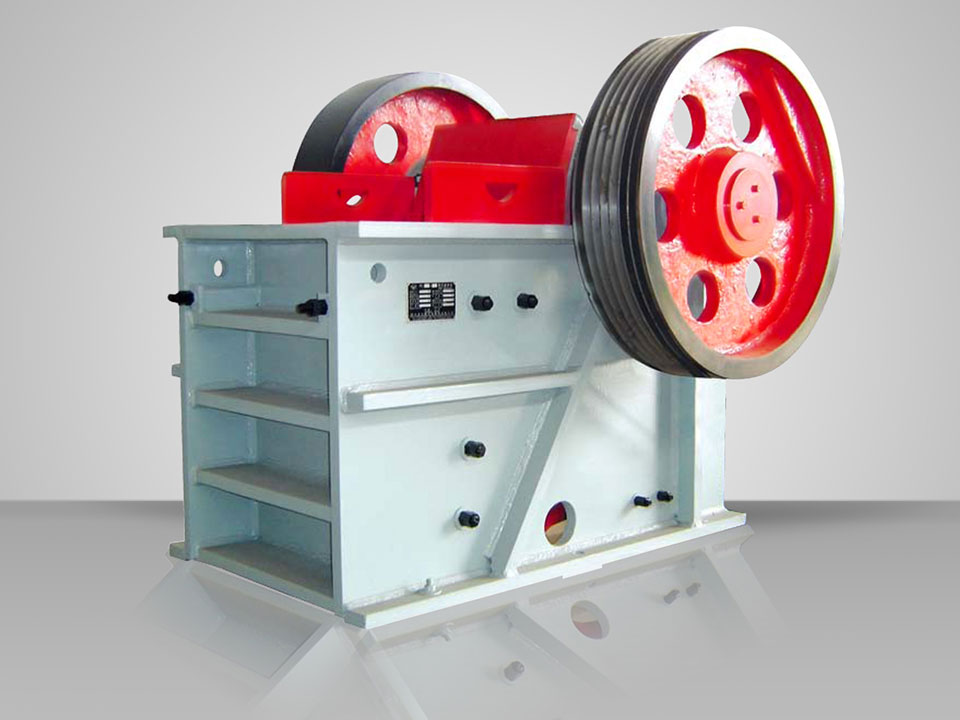

Description of PE/PEX/PEV Series Jaw Crusher:
We have three different kinds of jaw crusher for customers around the world: PE, PEX and PEV, and they are specially used in coarse and medium crushing of ores whose compressive strength is no more than 320Mpa.
The main components of our PE/PEX/PEV jaw crusher include crusher frame, movable jaw plate, movable jaw plate, movable jaw, eccentric shaft, lining plate, and adjustment seat.
Our jaw crusher has features of big crushing ratio, simple structure, reliable performance, easy maintenance, and low operation costs. And its products have even granularity. It is widely used in various fields, such as mining sector, smelting field, building material industry, highway field, railway sector, water conservancy field, chemical industry, and more.
The working principles are as follows: the electric motor drives the eccentric shaft to rotate through the belt pulley, and then the movable jaw will approach or leave the fixed jaw periodically. In this way, the material inside can be crushed progressively smaller and smaller as it travels downward until it is small enough to escape from the bottom outlet.
Technical Parameters of PE/PEX/PEV Jaw Crusher:
| Model |
Max. Feeding Grain Size (mm) |
Adjusted Scope of Nesting (mm) |
Processing Capacity (m3/h) |
Motor Power (kw) |
Weight (Excluding Motor) (t) |
| PE-60×100 | 45 | 3-10 | 0.2-0.6 | 1.1 | 0.16 |
| PE-150×250 | 125 | 10-40 | 0.6-3 | 5.5 | 0.81 |
| PE-250×400 | 210 | 20-80 | 3-13.1 | 15 | 2.8 |
| PE-250×500 | 210 | 20-80 | 5.7-31 | 18.5 | 3.37 |
| PE-400×600 | 340 | 40-100 | 10-40 | 30 | 6.5 |
| PE-430×600 | 400 | 90-140 | 35-60 | 37 | 6.5 |
| PE-475×1050 | 400 | 90-140 | 37.5-81 | 55 | 11.7 |
| PE-500×750 | 425 | 50-100 | 28.5-62.5 | 55 | 10.3 |
| PE-550×900 | 450 | 50-120 | 47-75 | 55 | 7.8 |
| PE-600×750 | 500 | 150-200 | 50-100 | 55 | 12 |
| PE-600×900 | 500 | 65-160 | 30-75 | 55-75 | 15.5 |
| PE-620×900 | 500 | 95-145 | 31-70 | 55-75 | 14.3 |
| PE-670×900 | 520 | 195-245 | 66-83 | 55-75 | 14.8 |
| PE-720×900 | 520 | 195-245 | 66-83 | 55-75 | 14.8 |
| PE-750×1060 | 630 | 80-140 | 72-130 | 110 | 29.3 |
| PE-800×1060 | 640 | 100-200 | 85-143 | 110 | 30 |
| PE-870×1060 | 660 | 200-260 | 181-210 | 110 | 30.5 |
| PE-900×1060 | 685 | 230-290 | 100-250 | 110 | 31 |
| PE-900×1200 | 750 | 95-165 | 87-164 | 110 | 50 |
| PE-1000×1200 | 850 | 195-265 | 197-214 | 110 | 50.6 |
| PE-1100×800 | 650 | 50-125 | 38-156 | 132 | 19.86 |
| PE-1200×1500 | 1000 | 150-300 | 250-500 | 220 | 82.3 |
| PE-1500×1800 | 1200 | 220-350 | 281-625 | 280 | 122 |
| PE1600×2100 | 1250 | 175-300 | 870-1500 | 355 | 169 |
| PEV-430×650 | 360 | 40-100 | 25-75 | 37 | 5.1 |
| PEV-500×900 | 425 | 50-100 | 31.25-68.75 | 55 | 10 |
| PEV-600×900 | 500 | 70-130 | 53-106 | 75 | 13 |
| PEV-750×1060 | 630 | 80-140 | 72-140 | 110 | 24.2 |
| PEX-100×600 | 80 | 7-21 | 2-8 | 7.5 | 0.9 |
| PEX-150×750 | 120 | 18-48 | 5-16 | 15 | 3.5 |
| PEX-200×1000 | 160 | 20-55 | 6.9-23.8 | 22 | 6.5 |
| PEX-250×750 | 210 | 25-60 | 8-22 | 22 | 5.1 |
| PEX-250×1000 | 210 | 25-60 | 10-32 | 30 | 6.5 |
| PEX-250×1200 | 210 | 25-60 | 13-38 | 37 | 7.7 |
| PEX-300×1300 | 250 | 20-90 | 10-65 | 75 | 11.6 |
=========================================================================================================
