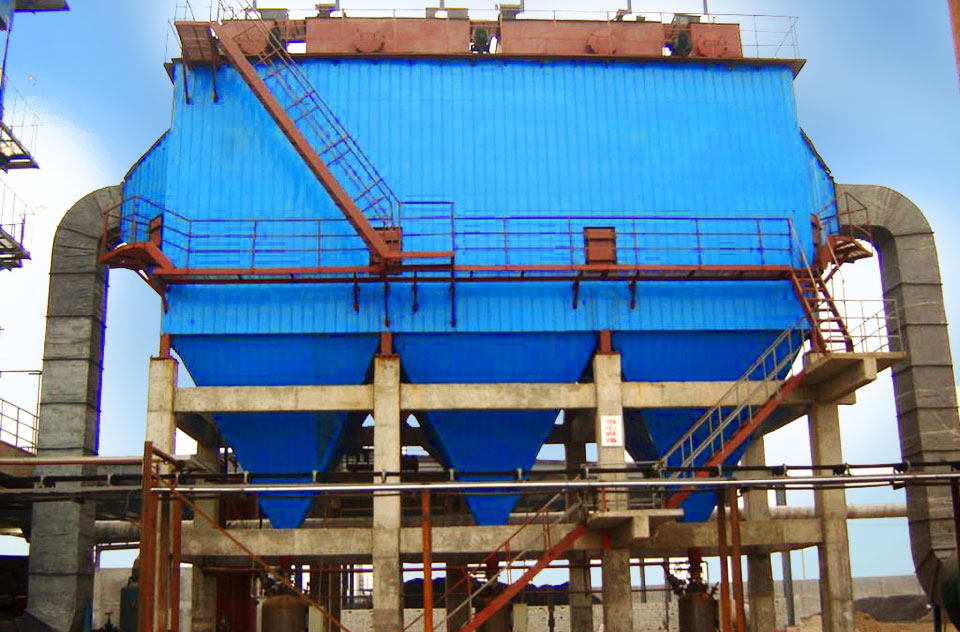

CDWY Electric Precipitator

Description of CDWY Electric Precipitator:
This CDWY electric precipitator, also known as electrostatic air cleaner or electrostatic precipitator, is a kind of new dust collection device that removes particles from flowing gases (like air) by the force of an induced electrostatic charge. And it can easily remove fine particulate substances, like dust and smoke, from the air stream. Compared with wet scrubbers that use energy directly to the flowing fluid medium, it applies energy only to the particular matter which is being collected. For this reason, it is quite efficient in its electricity consumption.


Parameters of CDWY Electric Precipitator:


Model
Performance



CDWY
30-1330-3/1



CDWY
40-2840-3/1



CDWY
50-3985-3/1



CDWY
60-3650-3/1



CDWY
70-3/1



CDWY
85/3/1



CDWY
90/3



CDWY
120/3/2



CDWY
163


Cross-sectional area of electric field

m2

30

40

50

60

70

85

90

120

163

Gas handling capacity

m3/h


67000
~112000


105000


126000
~180000



≤160000
(dry method )



176000
~252000



214000
~306000



≤240000
(wet method)



315000
~449260



411000
~587000


Area of dust collecting plate

m2

3456

4140

3650

4100

5030

6800

7263

10056


Air speed of electric field

m/s

0.6~1

0.7

0.7~1

0.74

0.7~1

0.7~1

0.74

0.7~1

0.7~1

Homopolar gap

mm

300/390/500

400

300

400

400

400

400

400

400

Length of each electric field

m

2.7

4

4

4

4

4

4

4

4

Number of electric field


3

3

3

3

3

3

3

3

3

Dusty concentration of inlet

g/Nm3

80

60

30

≤80

Dry method 80; wet method 40

<100

80

60

80

Dust collecting efficiency

%

99.8

99.5

99.5

≤99.5

99.5

<99.5

99.5

99.5

99.5

Plate type


Z type

C type

C type

C type

C type

C type

C type

C type

C type

Corona wire type


RS barb type

RSbarb type

RS barb type

RS barb type

RS barb type

RS barb type

RS barb type

RS barb type

RS barb type

silicon rectifier

Model



GGAJO2-0.4/72
GGAJO2-0.4/100


GGAJO2-0.3/72

GGAJO2-0.6/60

GGAJO2-0.6/72

GGAJO2-0.6/72

GGAJO2-0.6/72

GGAJO2-0.6/72

GGAJO2-0.6/72

GGAJO2-0.6/72

Current

mA

400

300

400

600

600

600

700

600

1200

Voltage

kV

72/72/100

72

60

66

72

66

72

72

72

Dust discharge device


Rotary material feeder

Zipper machine

Zipper machine, double-flap valve

Rotary material feeder

Zipper machine, rotary material feeder

Zipper machine, rotary material feede

Zipper machine, rotary material feede

Zipper machine, rotary material feede

Zipper, rotary feeder

Total weight

t

94.5

129.5

173.8

162

189.11

266.74

222

391

431


=========================================================================================================
