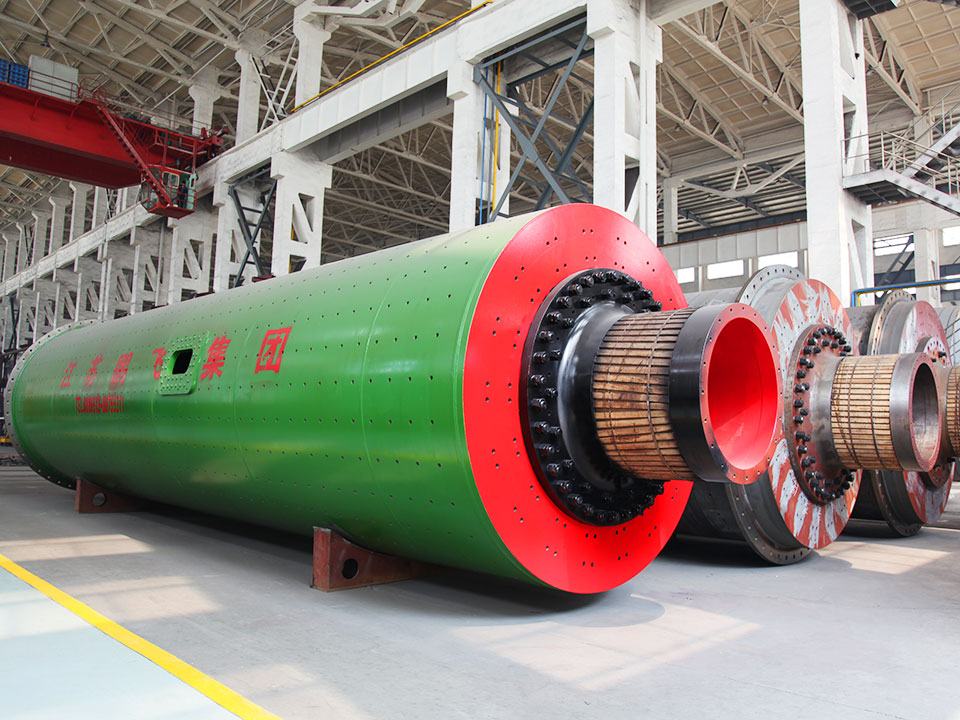

Description of Slag Ball Mill:
This slag ball mill is a key machine mainly used to process materials from crushing process, and it is widely used in various manufacture industries, like cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics. Besides, it can also used in dry and wet grinding for all kinds of ores and other grindable materials.
Technical Parameters of Slag Ball Mill:
Technical Parameters of Slag Ball Mill:|
Number |
Specification (m) |
Productivity (t/h) |
Rotating speed of cylinder |
Rotating mode |
Power (kw) |
Speed reducer |
Weight (t) |
|
|
Model |
Speed ratio |
|||||||
|
1 |
φ2.4x13 |
10-13 |
21.5 |
Edge |
800 |
MBY710 |
6.3 |
130 |
|
2 |
φ2.6x13 |
12-18 |
20.6 |
Edge |
1000 |
JDX800 |
6.3 |
158 |
|
3 |
φ3.2x13 |
22-28 |
18.7 |
Edge |
1600 |
JDX900 |
6.3 |
223 |
Note: Parameters in the form is only for reference, and specific parameters should depend on the signed contract technology.
=========================================================================================================
As world-known and high-quality cement machinery general contractor, Jiangsu Pengfei Group Co., Ltd can provide you with various machines, such as cement production line, cement grinding plant, active lime production line, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, drying equipment, cooling equipment, compound fertilizer equipment, Conveying Lifting Packing Equipment, Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you need equipment such as rotary kiln, ball mill, vertical mill, rolling machine , please don't hesitate to contact us.
