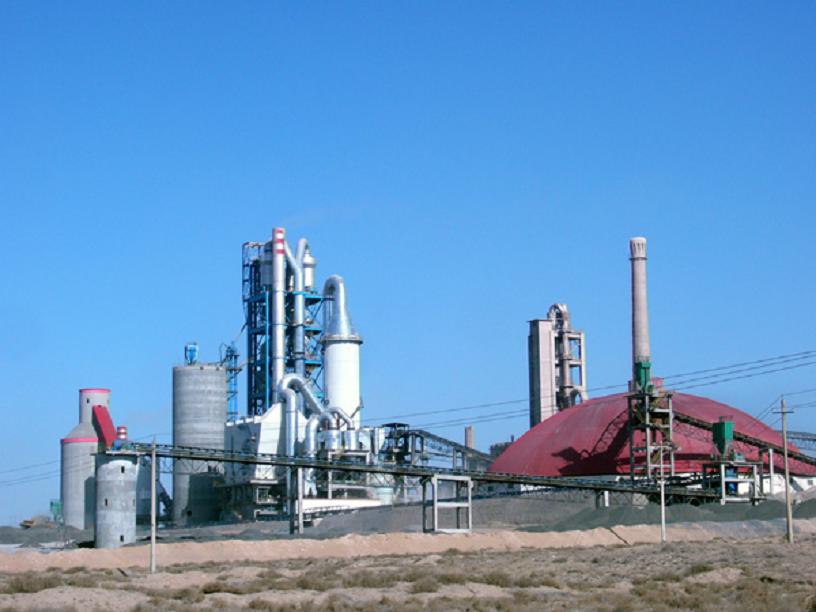

Description of New Type Dry Process Cement Production Line:
This new type dry process cement production line is a kind of process mainly used for small, medium and large-scale cement plants. Its preheater employs outside kiln precalciner. Capable of utilizing the waste heat from kiln inlet to decompose raw meal, this line is good at saving electricity and heat. Its closed production line makes it possible to reduce its ambient dust pollution to less than 50mg/Nm3. Besides, its capacity to make use waste heat makes it quite cost efficient for users.
Production Flow of New Type Dry Process Cement Production Line:
1. Crushing and Pre-homogenizing:
Most of the raw materials, like limestone, clay, iron ores, and coal, should be crushed before their pre-homogenization. Limestone is the primary material in this line, and due to its large particle size and high hardness, its good crushing plays an important role in the whole line. Special stacking and reclaiming technology has been used in the pre-homogenizing process so that raw materials can be better primarily homogenized.
2. Raw Meal Preparing:
Since the raw meal grinding work takes up more than 30% labor force in the whole dry process cement production line, it is quite important to choose appropriate grinding equipment and technological process so that high-quality products can be obtained.
3. Raw Meal Homogenizing:
The raw meal homogenization is a key factor for stable clinker calcination.
4. Preheating and Decomposing:
The preheater is used to preheat as well as decompose raw meal. So the length of the rotary kiln is effectively shortened. And the raw meal can fully exchange heat with the hot gases from the kiln. Because of its rapid and high-efficiency heat transfer, the production efficiency and heat consumption of this production line are greatly improved.
5. Clinker Calcining:
After its preheating and pre-decomposing, the raw meal will be calcined in the rotary kiln, where the generated carbonate will be further decomposed. Meanwhile, a series of solid phase reactions will take place.
6. Cement Grinding:
As the last process, the cement grinding will consume a great deal of electricity. And in this process, special size granule cement will be obtained.
7. Cement Packaging:
The cement can be transported in bulk or in bags.
Main Equipment List
5.1 Main Equipment List
| Department | Equipment name | Specification | Qty |
Weight (t) |
|
1: Preparation of Raw Materials |
Apron conveyor for limestone | Capacity: 200 t/h | 1 | ~33 |
|
First hammer Crusher for limestone |
Capacity: 200t/h Feed size: 1,000×800mm Product size: 95%≤120mm |
1 |
45 | |
|
Second hammer Crusher for limestone |
Capacity: 200t/h Feed size: 200mm Product size: 95%≤15mm |
1 |
53 | |
| Box feeder or clay | Capacity: 100 t/h | 1 | ~9 | |
| Crusher for clay |
Capacity: 60t/h Feed size: 800mm Product size: 95%≤25mm |
1 |
23 | |
| Apron conveyor for additive material and gypsum | Capacity: 200 t/h | 1 | ~43 | |
|
Hammer Crusher for additive material and gypsum |
Capacity: 160t/h Feed size: 800mm Product size: 95%≤25mm |
1 |
52 | |
|
|
|
|
|
|
|
2: Raw Meal Preparation |
Tube mill |
Capacity : 100t/h Feed size : ≤ 25mm Fineness: ≤12~14% ( R 80mm) Product moisture: ≤1% Motor Power : ~1,400kW |
1 1 |
180 |
| Mill fan |
Capacity : 270,000m3/h Pressure :11,000Pa Motor Power: 900kW |
1 1 |
~18 |
|
| ID fan |
Capacity : 330,000m3/h Pressure : 8,000Pa Motor Power: 1,000kW |
1 1 |
~20 |
|
| Bag house |
Capacity : 330,000m3/h Temp. : 100℃-mill on 200℃-mill off Outlet dust content : ≤30mg/ Nm3 |
1 | ~132 | |
| Fan |
Capacity: 330,000m3/h Pressure: 2,800Pa Motor Power: 500kW |
1 1 |
~23 | |
|
|
|
|
|
|
|
3: Clinker manufacture |
Preheater and precalciner |
Capacity :1,500t/d Cyclone : C1 :1-Φ5,450mm C2 :1-Φ5,450mm C3 :1-Φ5,450mm C4 :1-Φ5,700mm C5 :1-Φ5,700mm Precalciner:Φ4,600×27,500mm |
1 | ~250 |
| Rotary kiln |
Φ3.5×54m Capacity :1,500t/d Piers :3 Inclination: 4% Speed :0.4~4.2r/min Motor Power:250kW |
1 1 |
320 | |
| Tertiary air duct | Φ1,900mm | 1 |
|
|
| Clinker cooler |
Capacity : 1,500t/d Cooling area : ~39.6m2 Inlet temp.:1400℃ Outlet temp. : 65C+amb. temp. Motor Power:63kW Clinker crusher |
1 1 1 |
~150 | |
| Burner |
|
1 | ~3 | |
| EP for cooler |
Gas volume : 255,000m3/h Inlet temp.: 250℃(Max. 400℃) Outlet dust content :<50mg/ Nm3 |
1 |
|
|
| EP fan |
Gas volume : 260,000m3/h Pressure :2,000Pa Motor Power:185kW |
1 |
|
|
|
|
|
|
|
|
|
4: Cement manufacture |
Cement mill |
Mill Φ3.2×13m Product fineness: 3200cm2/g Capacity: ~50t/h Motor Power for mill:1600KW |
2 2 |
~224×2 |
| Bag filter |
Capacity: 100,000m3/h Outlet dust content : ≤50mg/ Nm3 |
2 |
|
|
| Fan |
Capacity: 106,000m3/h Pressure:6,500Pa Motor Power: 280kW |
2 2 |
|
|
|
5: Cement packing & bulk loading |
rotary packer | Capacity:100t/h | 2 | ~6×2 |
| Self-auto bag cement truck loader |
Capacity:120t/h |
4 | ~3×4 | |
|
|
|
|
|
=========================================================================================================
