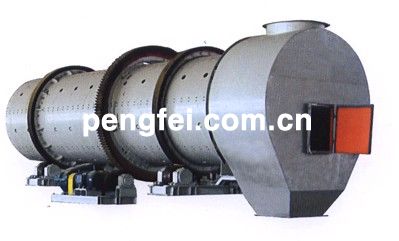

Spray Granulation Dryer

Description of Spray Granulation Dryer:
This PZ type spray granulation dryer has integrated the spraying, granulating, and drying into one body. A series of new technologies have been used in the process of its manufacture, such as strengthened bricks, heat transfer, internal classification, internal material returning, internal crushing, and so on.

It has features of high productivity, easy operation, energy saving, simple process flow, etc.

Technical Parameters of PZ Series Spray Granulation Dryer

Specification Output (t/h) Rotating speed of cylinder(r/min) Cylinder slope (%) Inlet temperature Slurry temperature Moisture of slurry Motor power (kw) Weight (t)
Φ3.0×12 100-150 5.0 1.76 350℃ 110℃ 25-30% 55 71.0
Φ3.0×13 100-150 5.0 1.76 350℃ 110℃ 25-30% 55 75.3
Φ4.0×12 150-200 4.1 1.5 350℃ 110℃ 25-30% 110 105
Φ4.0×14 150-200 4.1 1.5 350℃ 110℃ 25-30% 130 109.8
Φ3.0×12 200-300 4.1 1.5 450℃ 110℃ 25-30% 160 151
Φ3.0×12 200-300 4.1 1.5 450℃ 110℃ 25-30% 185 160
Φ3.0×12 400-500 4.1 1.5 450℃ 110℃ 25-30% 220 184
Φ3.0×12 400-500 4.1 1.5 450℃ 110℃ 25-30% 250 196
Φ3.0×12 500-600 4.1 1.5 650℃ 115℃ 25-30% 280 255
Φ3.0×12 500-600 4.1 1.5 650℃ 115℃ 25-30% 315 265


Note:
1. The moisture of its products is no more than 1.5%.
2. 1-4mm particle size is more than 90%.



=====================================================================================================================
